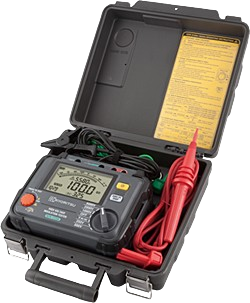

Kyoritsu 3125A Digital High Voltage Insulation/Resistance Tester - Versatile AC/DC Testing Solution

Kyoritsu 3125A Digital High Voltage Insulation/Resistance Tester - Versatile AC/DC Testing Solution

Description: The Kyoritsu 3125A Digital High Voltage Insulation/Resistance Tester is a comprehensive testing solution designed for high voltage applications. With a wide test voltage range from 250V to 5000V AC/DC, it offers versatile testing capabilities for insulation resistance and resistance.

Featuring insulation resistance measurement capabilities of up to 1TΩ and a short-circuit current of up to 1.5mA, the 3125A ensures accurate and reliable testing results. The inclusion of a diagnosis function for PI (Polarization Index) and DAR (Dielectric Absorption Ratio) enhances diagnostic capabilities for insulation systems.

Equipped with newly-designed alligator clips and housed in a tough hard case, the 3125A is built to withstand harsh working environments. The filter function reduces noise interference, ensuring stable and precise measurements.

The large display with bar graph indication and backlight provides clear visibility of test results, while the live voltage warning enhances user safety. Additionally, the 3125A complies with safety standards IEC 61010-1 CAT IV 300V/CAT III 600V, ensuring optimal user protection.

Key Features:

• Wide Test Voltage Range: 250V to 5000V AC/DC for versatile testing.
• High Insulation Resistance: Up to 1TΩ for comprehensive insulation testing.
• Short-Circuit Current: Up to 1.5mA for accurate measurement.
• Diagnosis Function: PI and DAR for enhanced diagnostic capabilities.
• Robust Design: Newly-designed alligator clips and tough hard case for durability.
• Noise Reduction: Filter function minimizes noise interference for stable measurements.
• Clear Display: Large display with bar graph indication and backlight for easy reading.
• Safety Compliance: Meets IEC 61010-1 CAT IV 300V/CAT III 600V standards for user protection.

Experience efficient and reliable high voltage testing with the Kyoritsu 3125A Digital High Voltage Insulation/Resistance Tester, designed to meet the demands of professional electrical testing applications.
