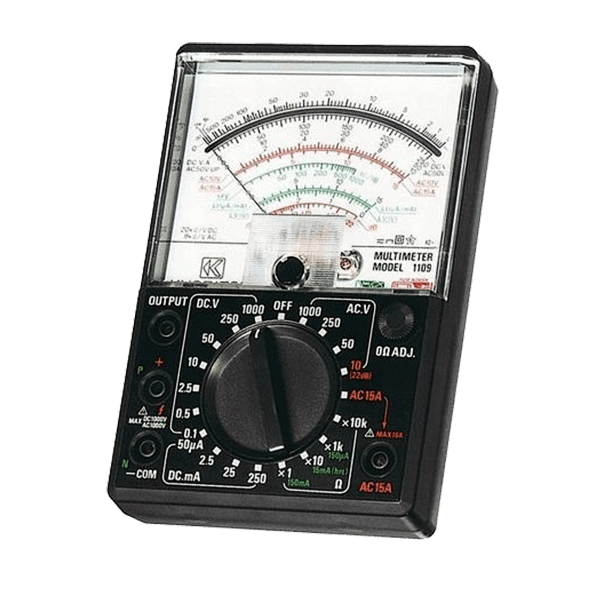

Kyoritsu Analog Multimeter 1000V AC/DC - 1109
Kyoritsu Analog Multimeter 1000V AC/DC - 1109
Regular price
KSh13,299.00
Regular price
Sale price
KSh13,299.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kyoritsu KEW 1109S Analogue Multimeters mirrored scale for easy and accurate reading. Output terminal to cut off DC component when measuring AC voltage. Safety designed input terminals and test leads.
Features:
- Mirrored scale for easy and accurate reading.
- Fuse and diode protected circuit (except 15A AC range).
- Output terminal to cut off DC component when measuring AC voltage.
- Safety designed input terminals and test leads.
| DC V | 0.1/0.5/2.5/10/50/250/1000V ±3% of FS (20kΩ/V) |
|---|---|
| AC V | 10/50/250/1000V (9kΩ/V) ±3% of FS |
| DC A | 50µA/2.5/25/250mA ±3% of FS |
| AC A | 15A ±3% of FS |
| Ω | 2/20kΩ/2/20MΩ ±3% of scale length |
| Decibel | -10 - +62dB |
| hFE | 0 - 1000 (Ω × 10) ±3% of scale length |
| Withstand Voltage | 6000V AC for 1 minute |
| Power Source | R6 (AA) (1.5V) × 2 6F22 (9V) × 1 |
| Dimensions | 150(L) × 100(W) × 47(D)mm |
| Weight | 330g approx. |
| Accessories | 7085 (Test Leads) 8901 (0.5A/250V fuse) × 2 R6 (AA) × 2 6F22 × 1 Instruction Manual |
The Kyoritsu Analog Multimeter 1000V AC/DC 1109 is an essential tool for electricians, technicians, and hobbyists who require accurate and reliable measurements in electrical systems.
