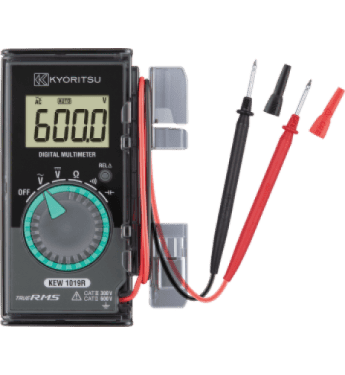

Kyoritsu Digital Multimeter 600V RMS - 1019R
Kyoritsu Digital Multimeter 600V RMS - 1019R
Regular price
KSh10,699.00
Regular price
Sale price
KSh10,699.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Digital Multimeter 600V RMS 1019R by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its True RMS capabilities, it provides accurate readings for both AC and DC voltage up to 600V, as well as current, resistance, and other essential electrical parameters.
Features:
-
True RMS Measurements
-
Sturdy test leads
-
Smart structure hard case
-
DCV, ACV, Ω, Capacitance Measurement
-
Complies with IEC 61010-1 CAT Ⅲ 300V / CAT Ⅱ 600V
-
Large display
- Simple range composition
| DC V | 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±0.8%rdg ±5dgt (600.0mV/6.000/60.00V) ±1.0%rdg ±5dgt (600.0V) |
|---|---|
| AC V | 6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz) ±1.7%rdg±5dgt (6.000/60.00V) (45 - 500Hz) ±1.6%rdg±5dgt (600.0V) (50/60Hz) ±2.0%rdg±5dgt (600.0V) (45 - 500Hz) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ ±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ) ±2.5%rdg±5dgt (40.00MΩ) |
| Continuity buzzer | 600.0Ω (Buzzer threshold value 60Ω or less) |
| Capacitance | 6.000/60.00/600.0nF/6.000/60.00/600.0µF ±3.5%rdg±50dgt (6.000nF) ±3.5%rdg±10dgt (60.00nF) ±3.5%rdg±5dgt (600.0nF/6.000/60.00µF) ±4.5%rdg±5dgt (600.0µF) |
| Applicable standards | IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 |
| Power source | CR2032 (3V) × 1 Approx. 120 hours, Auto power save: Approx: 15 minutes |
| Dimension | 126(L) × 85(W) × 18(D)mm |
| Weight | Approx. 135g (including hard case, battery) |
| Accessories | 9188 (Hard case), CR2032 × 1, Instruction manual |
The Kyoritsu Digital Multimeter 600V RMS 1019R is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical systems.
