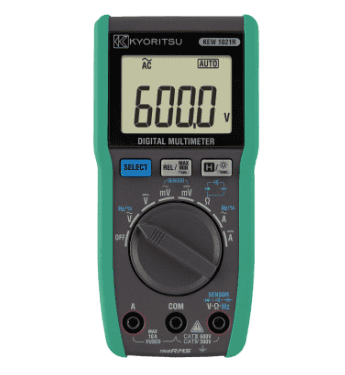

Kyoritsu Digital Multimeter 600V TRUE RMS - 1021R
Kyoritsu Digital Multimeter 600V TRUE RMS - 1021R
Regular price
KSh16,699.00
Regular price
Sale price
KSh16,699.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Digital Multimeter 600V True RMS 1021R by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its True RMS capabilities, it provides accurate readings for both AC and DC voltage up to 600V, as well as current, resistance, and other essential electrical parameters.
Features:
-
Accurate reading with True RMS
-
Large display with 6000 counts and Backlight
-
MIN/MAX function
-
Rugged and reliable
-
Enhanced current measuring function using an external clamp sensor
-
Sensor mode (with clamp sensor)
-
Ergonomic design
- Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
| DC V | 6.000/60.00/600.0V (Auto-ranging) ±0.5%rdg ±3dgt |
|---|---|
| DC mV | 600.0mV ±1.5%rdg ±3dgt |
| DC Clamp Sensor | 60.00/200.0A (Auto-ranging) ±1.5%rdg ±3dgt + Sensor accuracy |
| AC V | 6.000/60.00/600.0V (Auto-ranging) ±1.0%rdg ±3dgt [40 - 500Hz] |
| AC mV | 600.0mV ±2.0%rdg ±3dgt [40 - 500Hz] |
| AC Clamp Sensor | 60.00/200.0A (Auto-ranging) ±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz] |
| DC A | 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt |
| AC A | 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt[45 - 500Hz] |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging) ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ) |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Diode test | Open circuit voltage: < 3.0V |
| Capacitance | 60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF) |
| Frequency | ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt |
| DUTY | 10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz] |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS) |
| Power source | R03 (1.5V) × 2 |
| Dimension | 155(L) × 75(W) × 40(D)mm |
| Weight | Approx. 250g (including batteries) |
| Accessories | Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) × 1 (included), 9097 (Carrying case), R03 × 2, Instruction manual |
The Kyoritsu Digital Multimeter 600V True RMS 1021R is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical
