Easy9 RCD with overcurrent protection - 1P + Ns - 25 A - B curve - 6000 A - 30mA, 230V

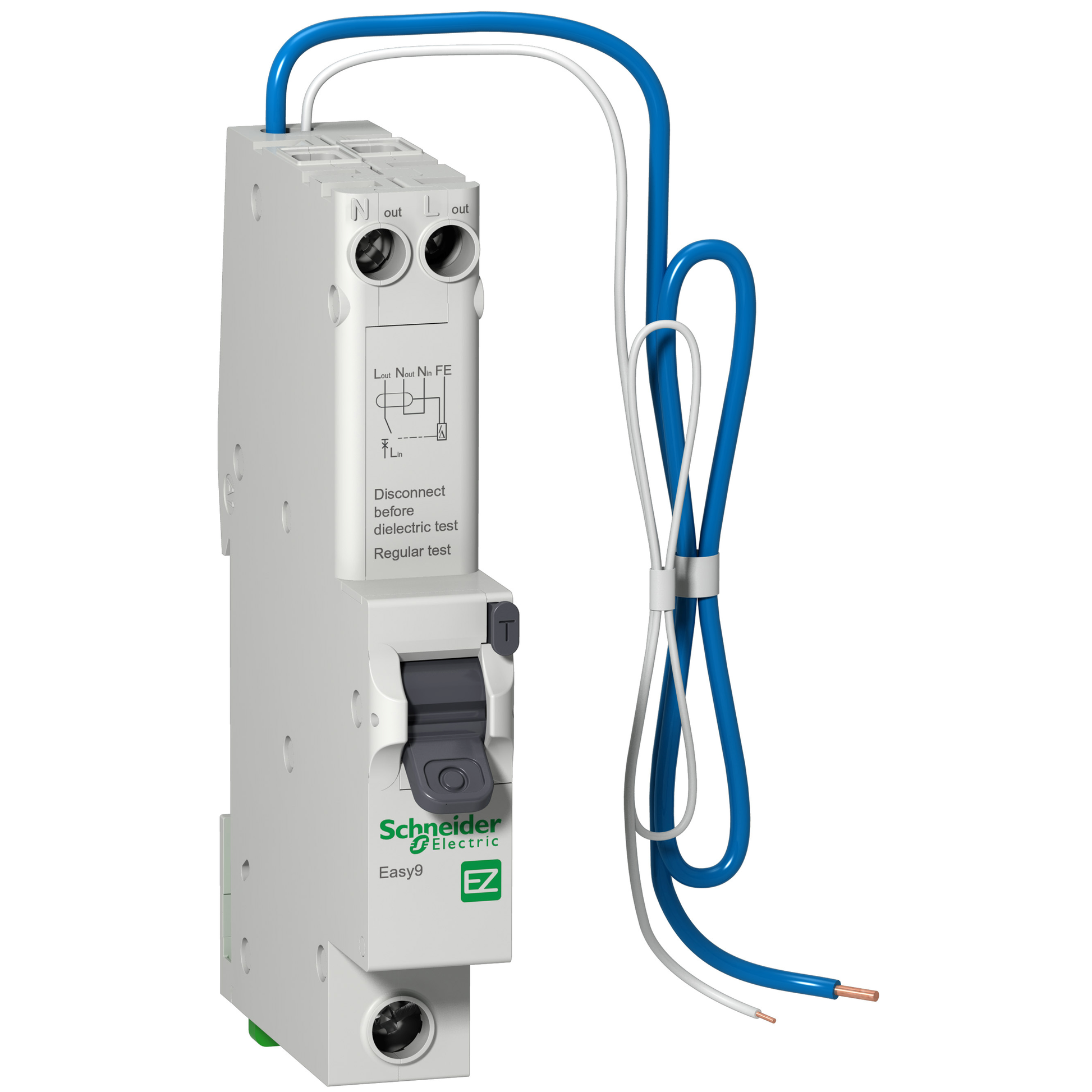

Schneider Easy9 RCBO (Residual Current Breaker with Overcurrent Protection), 1P+N, 25A, 30mA, Type A, 6kA at 230V, Curve B

Maximize safety and efficiency in your electrical installations with the Schneider Easy9 RCBO. This device combines overcurrent protection and sensitive earth leakage detection in one unit, designed for residential and light commercial settings where space and safety are paramount.

Key Features:

• Rated Current: 25A, suitable for protecting circuits powering general household or office equipment.
• Pole Configuration: 1P+N (One Pole + Neutral), ensuring complete protection of single-phase circuits by simultaneously disconnecting both live and neutral contacts in fault conditions.
• Thermal Magnetic Trip Unit: Provides reliable protection against thermal overload and instantaneous short circuits.
• Earth Leakage Sensitivity: 30mA, offering heightened sensitivity to prevent electrical shock and fire hazards caused by earth faults.
• Earth Leakage Protection Class: Type A, capable of detecting sinusoidal AC and pulsating DC fault currents, ensuring broad protection coverage.
• Breaking Capacity: 6kA at 230V, adequately handles common fault scenarios in domestic and light commercial environments.
• Curve Code B: Characterized by a medium magnetic trip point, ideal for circuits with moderate inrush currents such as those found in small motors and fluorescent lighting.
• Installation: Designed for easy installation in consumer units or commercial distribution boards, compatible with DIN rail mounting for a streamlined setup.
• Durability: Crafted from high-quality materials to ensure durability and a long service life under typical operating conditions.

Applications:

• Residential homes for circuit protection in areas like kitchens, living rooms, and home offices.
• Light commercial settings such as small offices, shops, and service areas, where protection against both overcurrent and earth faults is essential.
• Suitable for buildings with sensitive electronic equipment that requires consistent protection to prevent damage and ensure operational continuity.

The Schneider Easy9 RCBO is an essential component for any modern electrical system, offering advanced protection features in a compact design to ensure safety and compliance with electrical standards.
