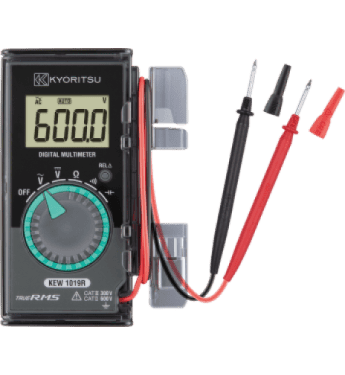

Kyoritsu Digital Multimeter 600V RMS - 1019R

Available:

In stock

Vendor:KYORITSU

SKU: 1019R

Category: Best Selling Products, Best selling products, Multimeters, New products, Newest Products, Protections and Switchgear

Tags: MultiMeters

Regular price KSh10,699.00 Sale

Quantity:

- +

Add To Wishlist

The Digital Multimeter 600V RMS 1019R by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its True RMS capabilities, it provides accurate readings for both AC and DC voltage up to 600V, as well as current, resistance, and other essential electrical parameters.

Features:

True RMS Measurements
Sturdy test leads
Smart structure hard case
DCV, ACV, Ω, Capacitance Measurement
Complies with IEC 61010-1 CAT Ⅲ 300V / CAT Ⅱ 600V
Large display
Simple range composition

DC V	600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±0.8%rdg ±5dgt (600.0mV/6.000/60.00V) ±1.0%rdg ±5dgt (600.0V)
AC V	6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz) ±1.7%rdg±5dgt (6.000/60.00V) (45 - 500Hz) ±1.6%rdg±5dgt (600.0V) (50/60Hz) ±2.0%rdg±5dgt (600.0V) (45 - 500Hz)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ ±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ) ±2.5%rdg±5dgt (40.00MΩ)
Continuity buzzer	600.0Ω (Buzzer threshold value 60Ω or less)
Capacitance	6.000/60.00/600.0nF/6.000/60.00/600.0µF ±3.5%rdg±50dgt (6.000nF) ±3.5%rdg±10dgt (60.00nF) ±3.5%rdg±5dgt (600.0nF/6.000/60.00µF) ±4.5%rdg±5dgt (600.0µF)
Applicable standards	IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source	CR2032 (3V) × 1 Approx. 120 hours, Auto power save: Approx: 15 minutes
Dimension	126(L) × 85(W) × 18(D)mm
Weight	Approx. 135g (including hard case, battery)
Accessories	9188 (Hard case), CR2032 × 1, Instruction manual

The Kyoritsu Digital Multimeter 600V RMS 1019R is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical systems.
