KYORITSU

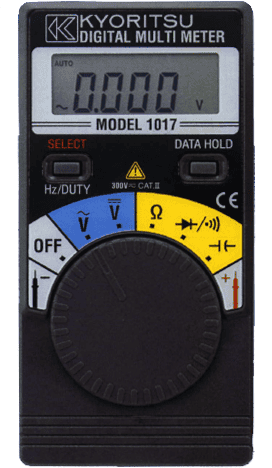

Kyoritsu Digital Multimeter - KEW 1017
Kyoritsu Digital Multimeter - KEW 1017
Regular price
KSh10,699.00
Regular price
Sale price
KSh10,699.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Digital Multimeter KEW 1017 by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its digital display, it provides accurate readings for voltage, current, resistance, and other essential electrical parameters.
Features:
-
Display : 4000 counts.
-
Auto range.
-
Diode test feature.
-
Capacitance test feature.
-
Continuity test.
-
Automatically turns power off in about 15 minutes to conserve battery life.
- Designed to international safety standard IEC 61010-1 CAT III 300V.
| DC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.8%rdg±5dgt (400mV/4/40/400V) |
|---|---|
| ±1.0%rdg±5dgt (600V) | |
| AC V | 4/40/400/600V (Input Impedance 10MΩ) ±1.3%rdg±5dgt (4/40V) ±1.6%rdg±5dgt (400/600V) |
| Hz | 10/100Hz/1/10/100/200kHz |
| Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±5dgt (400Ω/4/40/400kΩ/4MΩ) ±2.5%rdg±5dgt (40MΩ) |
| Diode Test | 4V Release Voltage:Approx. 0.4mA Test Current |
| Capacitance Test | 4nF/40nF/400nF/4µF/40µF/200µF |
| Continuity buzzer | 400Ω (Buzzer sounds below 120Ω) |
| Withstand Voltage | 3700V AC for 1 minute |
| Standard | IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326-1 |
| Power Source | LR44 (1.5V) × 2 |
| Dimensions | 107(L) × 54(W) × 10(D)mm |
| Weight | 70g approx. |
| Accessories | LR44× 2 Instruction Manual 1017 (Soft Case) 1017H (Hard Case) |
The Kyoritsu Digital Multimeter KEW 1017 is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical systems.
